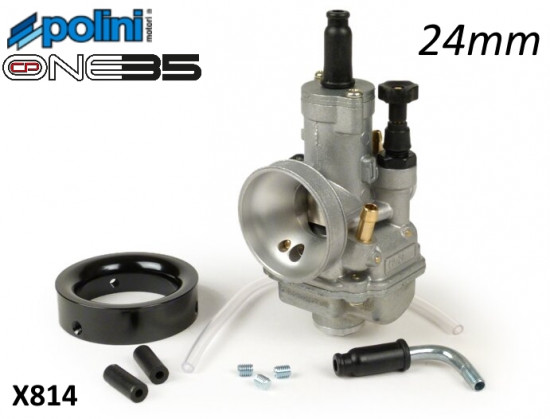

The CP Evolution series is a top-of-the-range version of the conventional Polini 'CP' carburettor, and uses a clever trick to take advantage of the positive effects of a large carburettor to give more engine power and more torque.
Thus this small Polini CP Evolution 24mm carburettor produces more power than a Dell'Orto PHBL25 carburettor! Due to the small dimensions and the integrated intake funnel, the CP carburettor is ideal for all scooter engines where a small physical size is an advantage.
Height: 118.5 mm
Width: 66 mm
Depth: 70 mm
Connection width air filter side: Ø46 mm (Ø60mm with enclosed funnel)
Connection width at the engine side: Ø28.5 mm
The carburettor has a round slide and connections for vacuum/oil (rubber caps included). The main nozzle is identical in construction to the Keihin PWK, although all other fine-tuning parts are Polini's own. The carburettor has a flip up cable choke, a flip up choke can be buy separately (code X814A)
