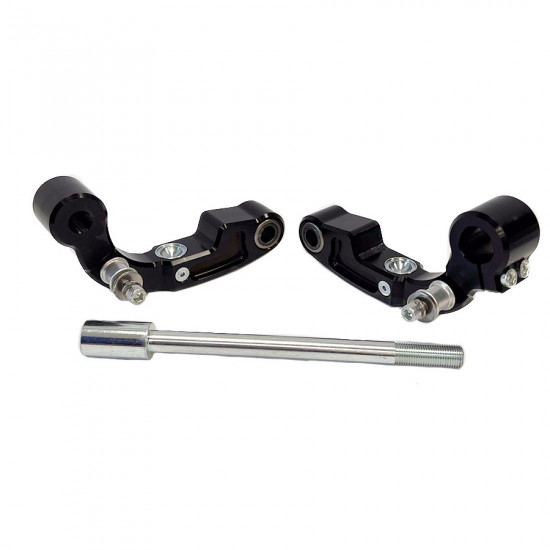

Pair of adjustable CNC fork links by Casa Performance for Lambretta
Pair of adjustable CNC fork links by Casa Performance for Lambretta Pair of adjustable CNC fork links by Casa Performance for Lambretta Pair of adjustable CNC fork links by Casa Performance for Lambretta Pair of adjustable CNC fork links by Casa Performance for Lambretta
Origin: Italy

Pair of adjustable CNC fork links by Casa Performance for Lambretta

Product code: X93R-KIT

Models: Lambretta GP, Lambretta S1, Lambretta S2, Lambretta S3, Lambretta Serveta, Lambretta Special, Lambretta SX, Lambretta TV2, Lambretta TV3

€335.00
Spend just €150.00 more to receive a free RLC T-Shirt.

* Required Fields

€335.00

Description:

Born from our experiences on European race circuits, the brand new fork link kit is Casa Performance concept intended to vastly improve handling. The links are entirely CNC-made and offer absolute operating precision.

The links can be adapted without any modification to all Lambretta S1 + S2 + TV2 + S3 + TV3 + Special + SX + DL + Serveta equippped with an anti-dive front brake set-up (such as our X130 brake). These links do not have the pin which holds the hub in position, therefore they are not compatible with original drum or disc brake system.

Two versions are available in the version for standard 12mm diameter wheel axle and also a larger 15mm version for suitably modified wheel hubs. The new design of the front suspension linkages guarantees great precision and ease of assembly, thanks to the revised profile.

Roller bearings and precision ground bushings fix the links to the fork, reducing play and friction to an all-time low.

The wheel axle is clamped, like on high-level sports bikes, a solution that allows not to put tension on any component of the suspension, making operation fluid and homogeneous.

Another solution borrowed from the competition fields is certainly the spring pre-load adjuster screw, This is accessible with the scooter in running order and allows you to vary the spring preload by 10mm.

Casa Performance recommended setup:
- Front fork spring guide and ball Lambretta GP type (Casa Lambretta code T47C + T61
- Casa Lambretta spring code T47
- Upper plastic bush code T49B

The special version with 15mm wheel axle is supplied complete with bearings but it will still be necessary to make changes to the brake unit to house the larger axle, while the 12mm axle version is plug 'n play.

These links use GP / DL type rods and loose locating balls.
