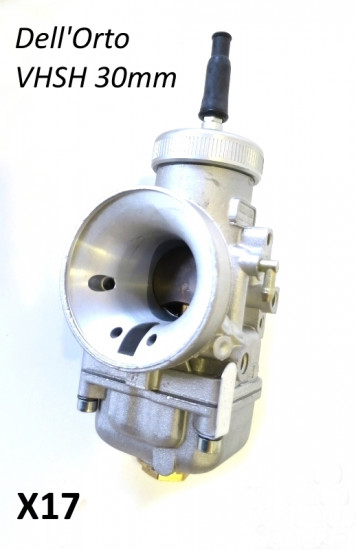

Carburettor Dell'Orto VHSH 30mm
Carburettor Dell'Orto VHSH 30mm Carburettor Dell'Orto VHSH 30mm Carburettor Dell'Orto VHSH 30mm Carburettor Dell'Orto VHSH 30mm Carburettor Dell'Orto VHSH 30mm
Manufacturer: dellorto
Origin: Italy

Carburettor Dell'Orto VHSH 30mm

Product code: X17

Models: Lambretta S1, Lambretta S2, Lambretta TV2, Lambretta S3, Lambretta Special, Lambretta SX, Lambretta TV3, Lambretta GP, Lambretta Serveta

€326.00
Spend just €130.00 more to receive a free RLC T-Shirt.

Description:

Carburatore Dell'Orto VHSH 30mm. For use with the Casa Lambretta SS200 + SS225 + SS250 kits (NOT SSR250 or SSR265 kits / engines) supplied with GENERIC JETTING.

Please note that with all carbs supplied by RLC, there CAN be differences in final settings based on weather, altitude and atmospheric conditions of the customers location so it is understandable that some fine tuning will be required. This is supplied with generic settings that you may need to adjust.

  • Max jet: 165
  • Idle jet: 60
  • Idle jet diffusor: B48
  • Slide: 50
  • Needle: U16 (1st clip from top)
  • Float needle valve: 300
  • Float weight: 9 gr.
