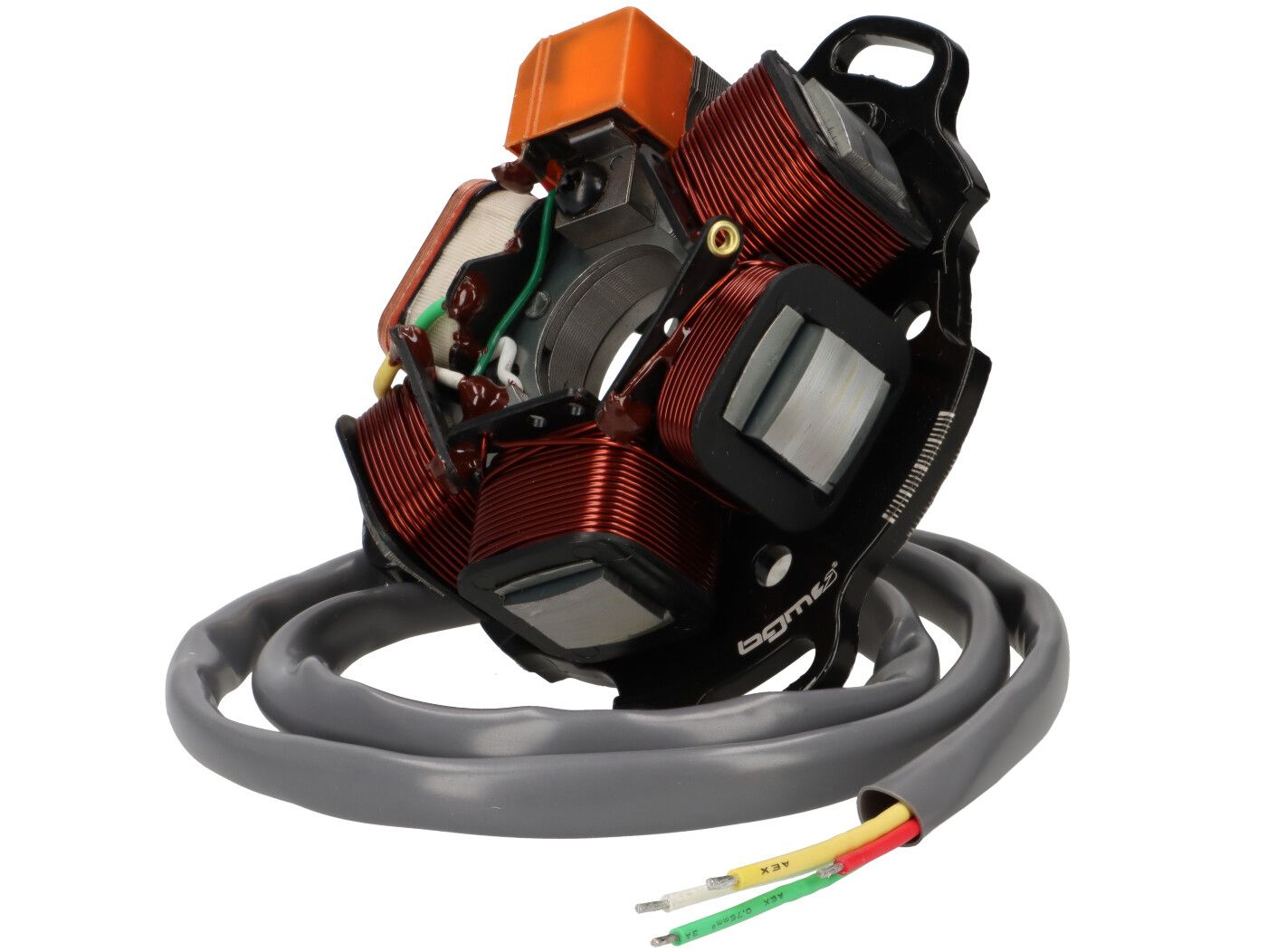

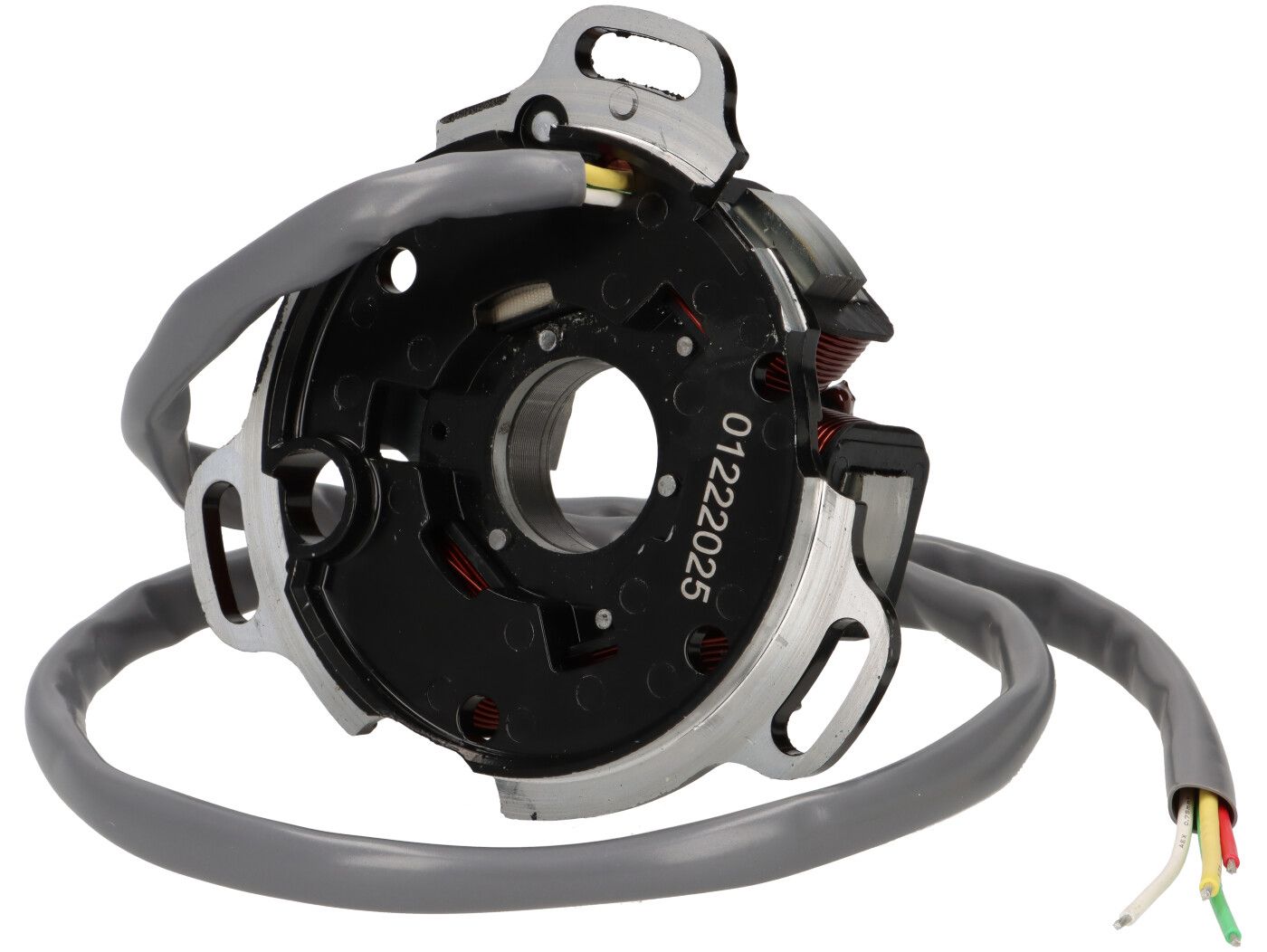

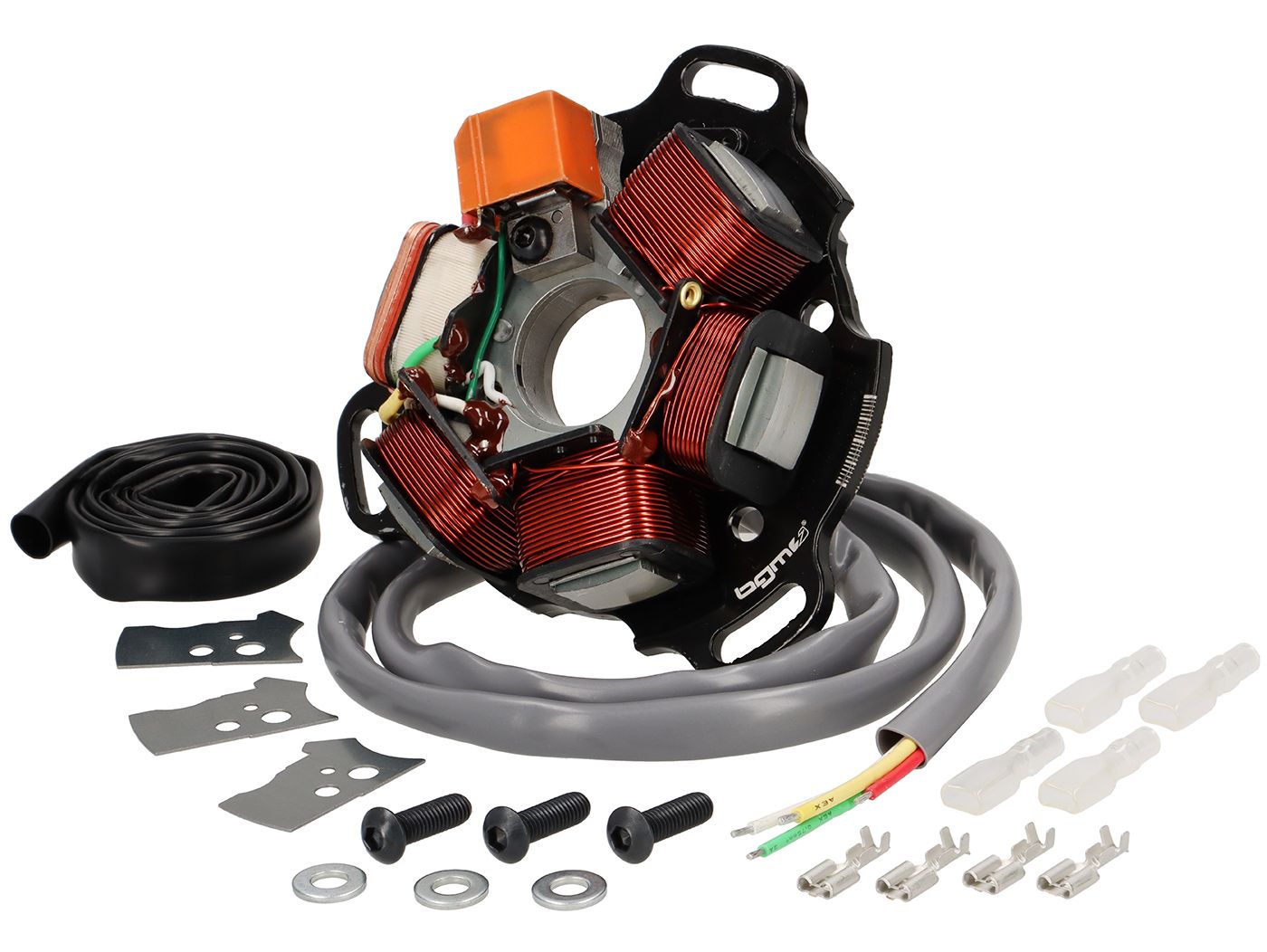

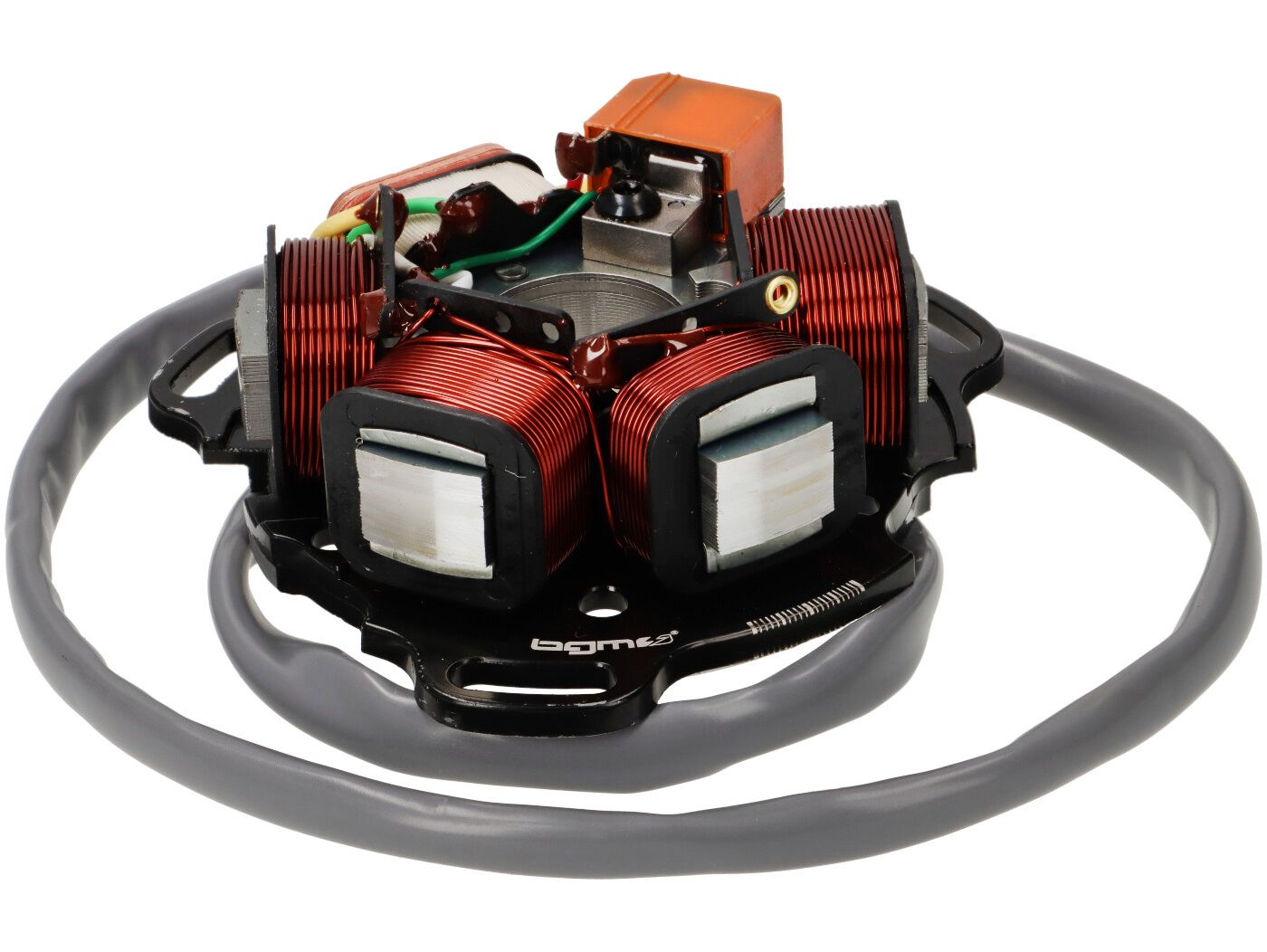

BGM Pro 12V 120W AC electronic ignition stator plate Lambretta S1 + S2 + S3 + SX + DL/GP

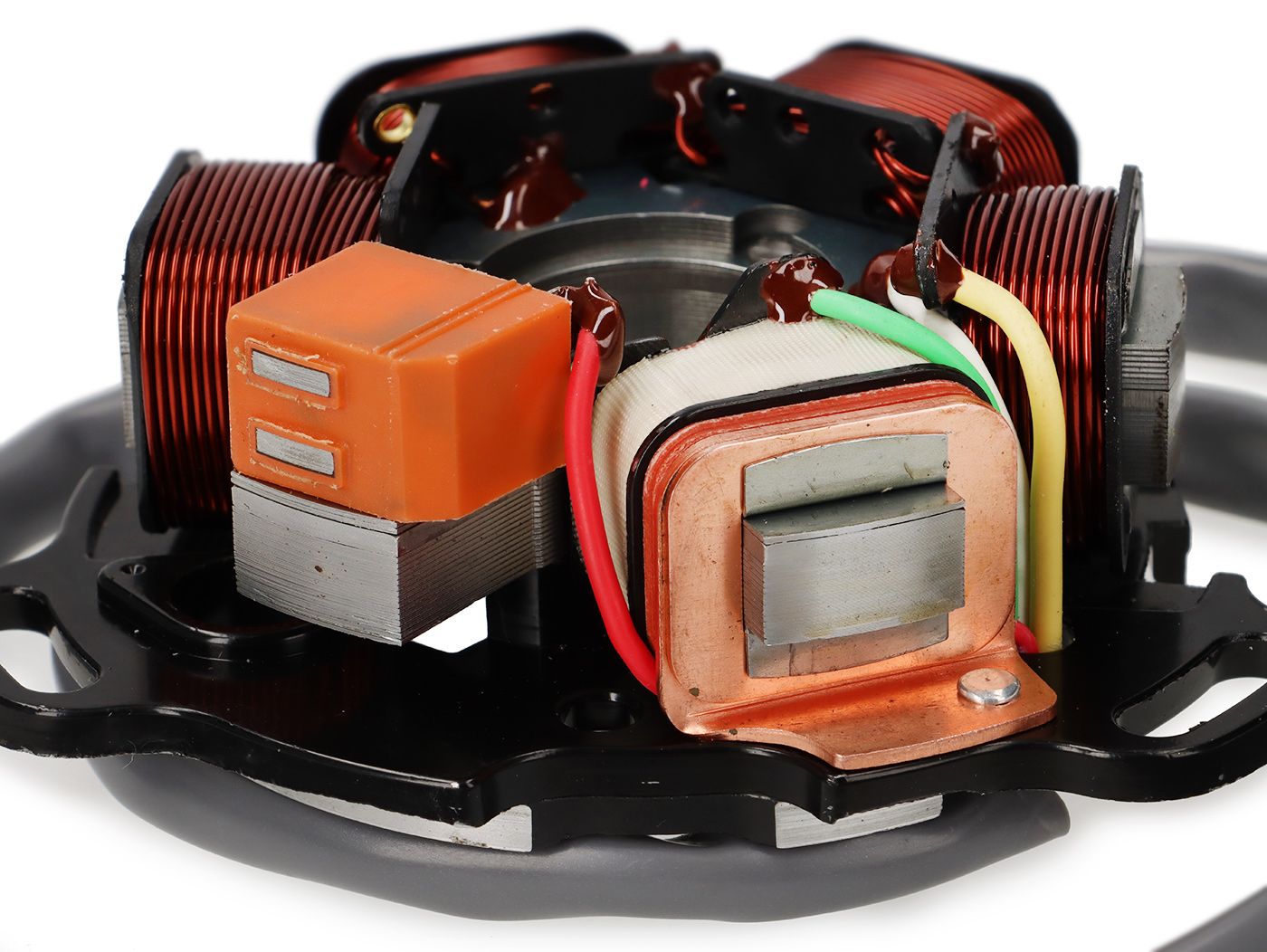

Lambretta bgm PRO ignition base plate with ORANGE PICKUP. The bgm PRO ignition base plates for the Lambretta were one of the first bgm products. The first samples were presented at the Eurolambretta 2007 in Neckarsulm. The base plate is based on the electronic ignition introduced in 1970 with the Lambretta dl 200 electronic. The ORANGE PICKUP base plate is the current version and, in addition to all the proven features, comes with a completely redesigned pickup. Our new pickup eliminates all problems that arose in the past due to the combination of different components from various manufacturers. The offset of the pickup in relation to the pickup surface (trigger) in the flywheel could lead to pickup failure. The new pickup is immune to this problem and will function forever despite the offset. Just as you would expect from a complete bgm ignition system on an engine with original components. The proven features remain, of course, and many small details have even been improved. High light output (120W) thanks to the maximum number of windings Proven excitation coil with copper plate for maximum reliability Pickup with carbon barrier layer for a clean ignition pulse Cleanly machined light coils High-quality solder joints Gray and black bougier tube Sufficient cable length for custom wiring Optional spacers for adjusting the pickup height***. Base plate with precise scaling for quick ignition adjustment during flashing. Extremely flexible and temperature-resistant cables without fabric sheathing. The bgm PRO ignition base plate with the new pickup delivers an even more stable ignition spark and, thanks to the optimized number of windings and wiring, maximum light output. The alternators are available in AC and DC versions: AC = Alternating current = Light via alternator DC = Direct current = Light via battery
